Sonetics Connect

APEX CONNECT

Teams Unite!  Bring everyone into the conversation with Connect
Apex Team Wireless Headsets let you focus on the job, not your communication.

  • Lightweight & portable
  • Hands-free operation
  • Real-time team communication
  • DECT7 wireless communication

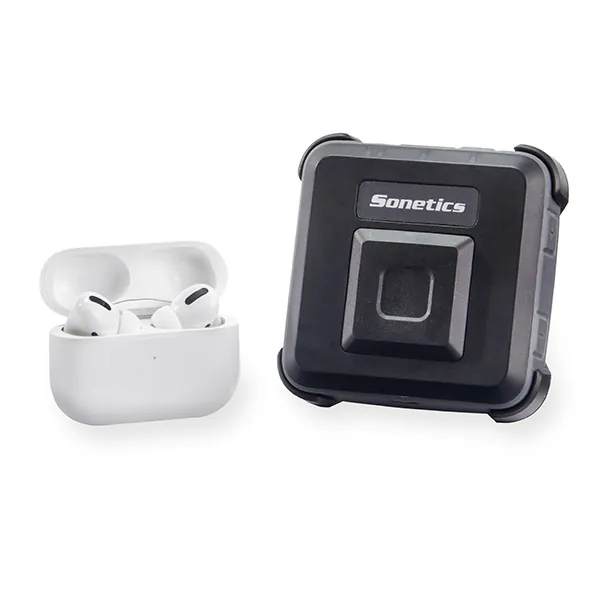

  • Pair with your favorite device
    • Bluetooth headphones
    • Bluetooth Speaker
    • Wired headset.

IMPROVE TEAM COMMUNICATION

ULTRA-PORTABLE AND LIGHTWEIGHT

HANDS FREE FULL-DUPLEX

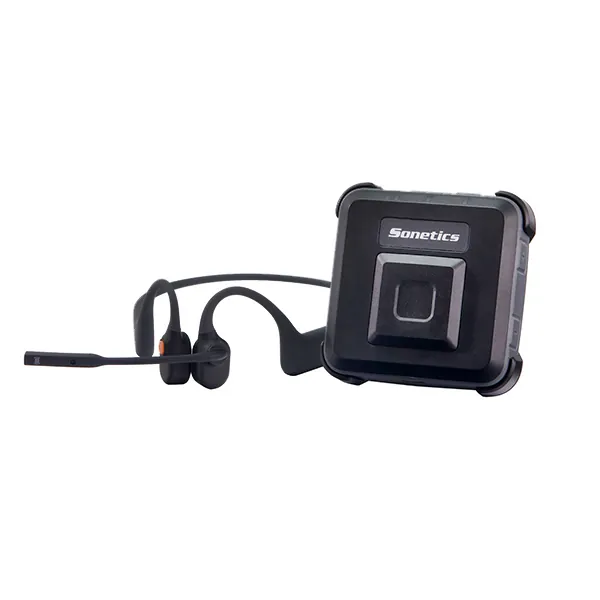

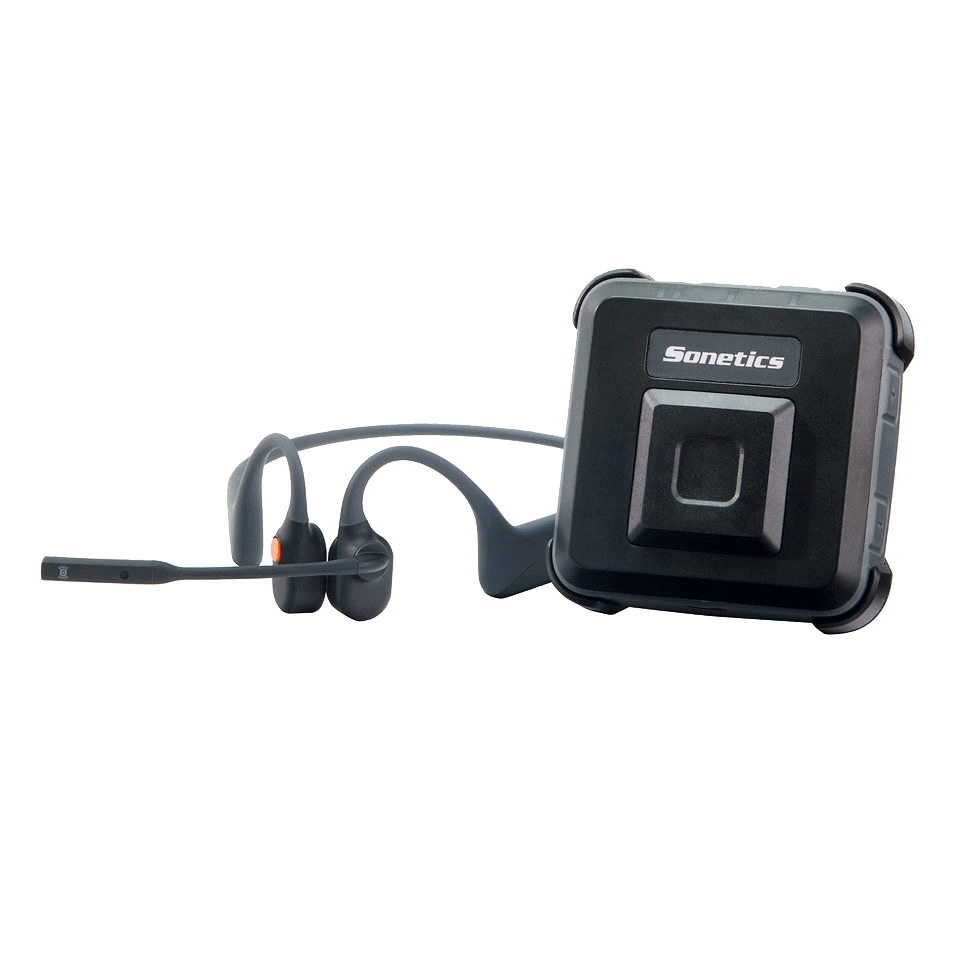

PAIR WITH YOUR OWN HEADSET

DURABLE DESIGN

CONNECT THE DOTS

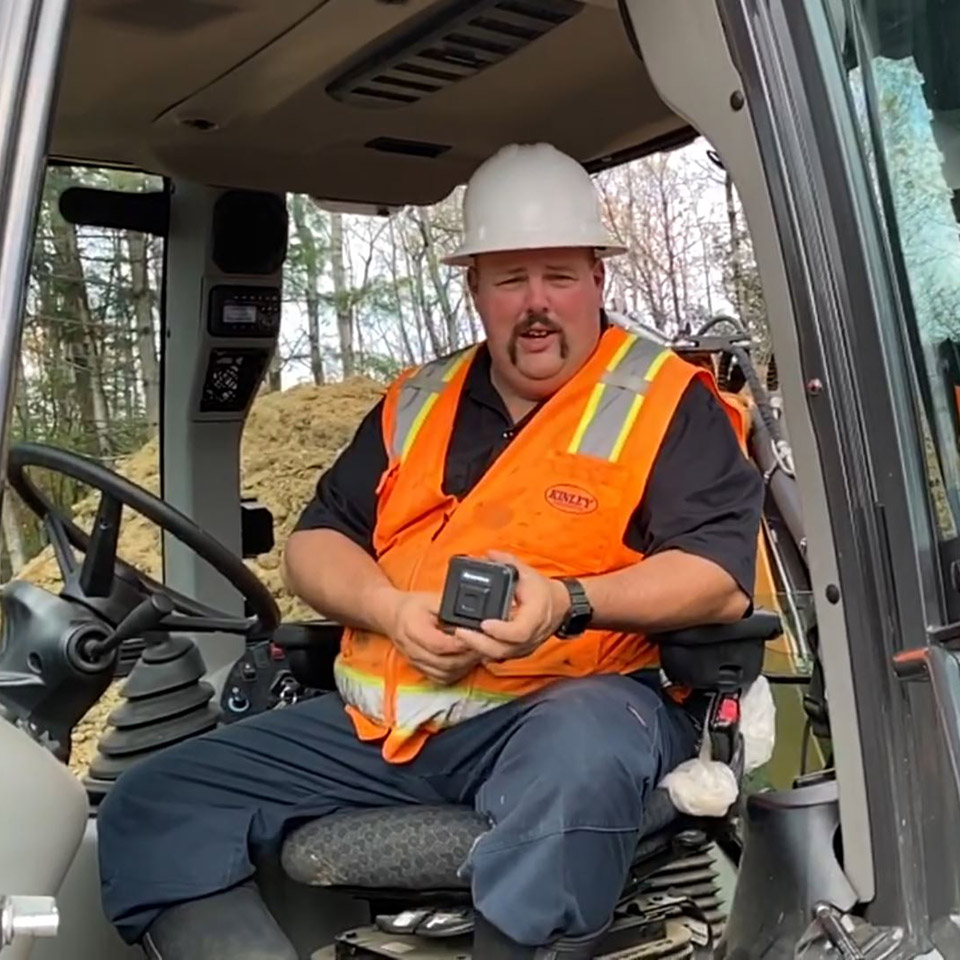

From the front office, a control room, or sitting in the cab of a backhoe, Sonetics Apex Connect allows you to reach your team in high-noise areas easily. It is specifically designed to be lightweight and portable for workers who don’t need hearing protection.

CAN YOU SAY FLEXIBLE?

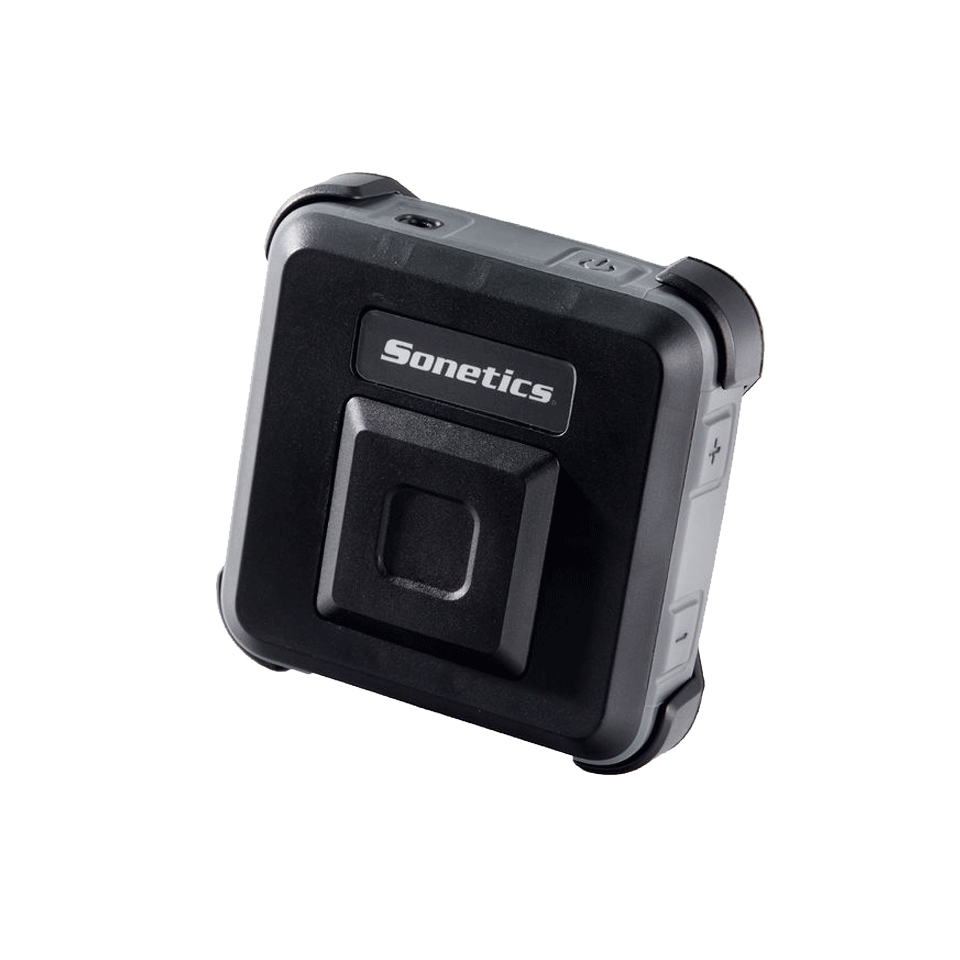

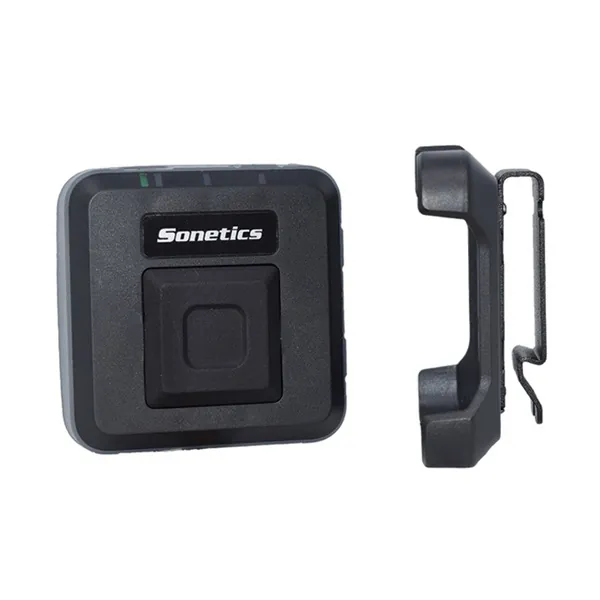

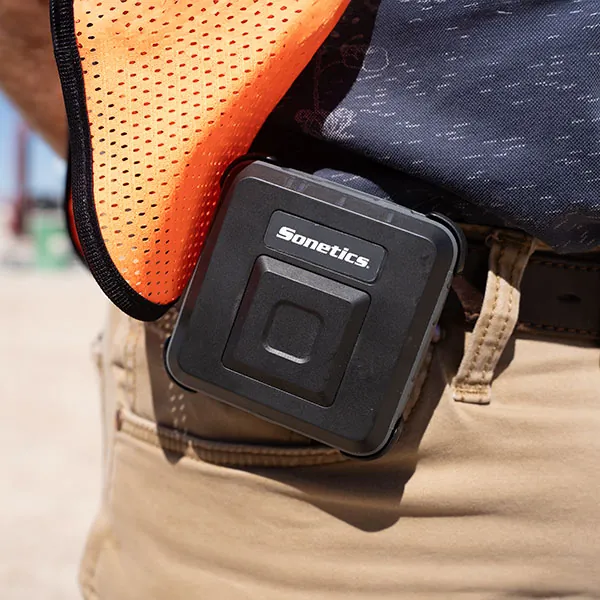

Lightweight, compact and portable. The Sonetics Apex Connect can clip to your belt, slide into your pocket, or mount on your dashboard.

Connect Charging Case

CHARGE FORWARD

Whether your Apex Connect is à la carte, or you opt for a full system with a heavy duty Charging Case to protect your investment, you’ve got options to keep them juiced up.

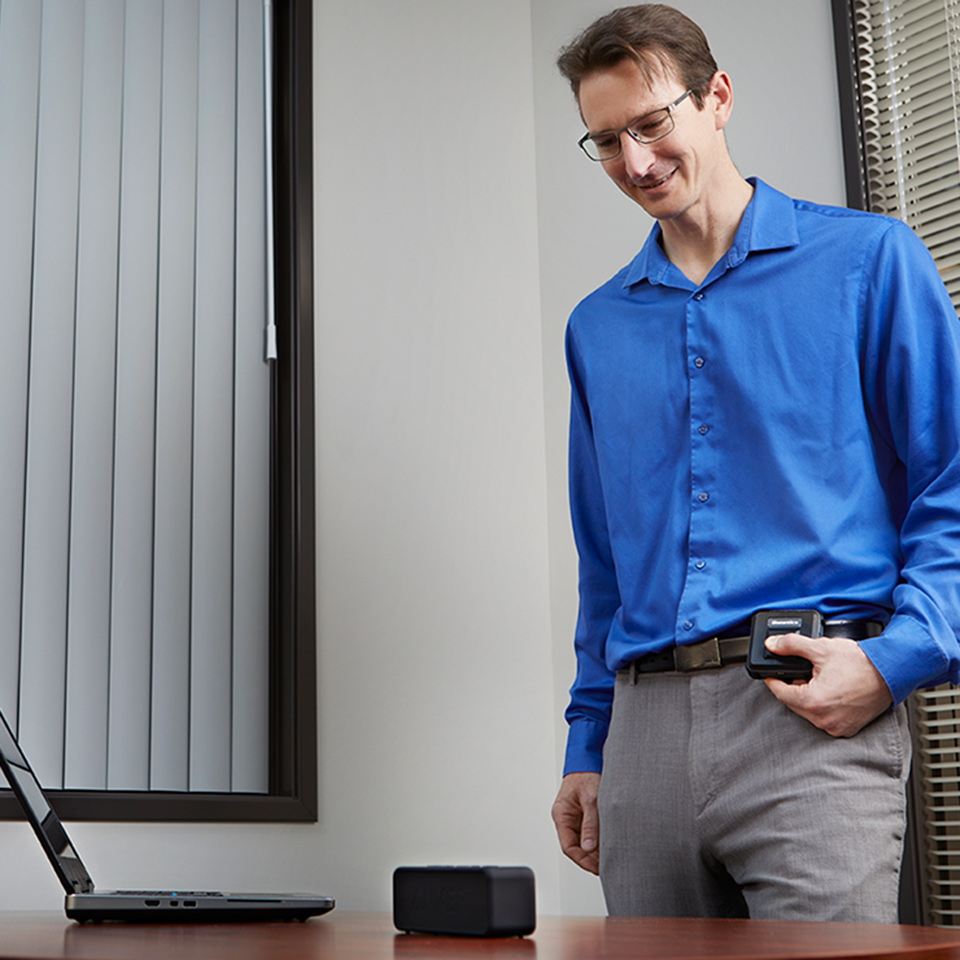

apex-connect-office-speaker-960

DECT7 Wireless

DECT7 technology is built for business and is a clear choice for commercial and industrial team communications.

CLARITY

DECT wireless technology is designed for voice transmission.

SCALABILITY

Deploy a single small team and expand to full enterprise.

SECURITY

Digital encryption ensures privacy and security.

RANGE

Up to a 1,600 feet line of sight range covers work zones large and small.
apex-connect-backhoe-960

INTERACT THE WAY YOU WANT

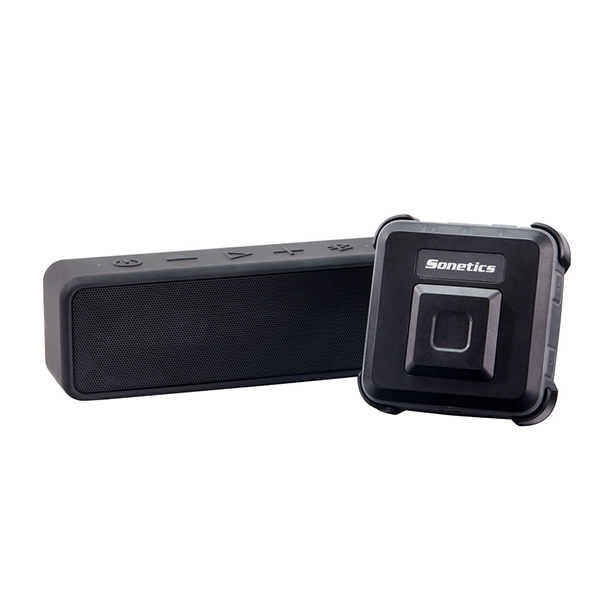

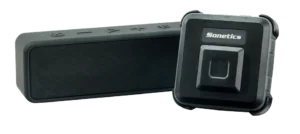

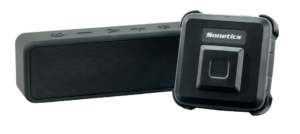

Don’t want to wear a headset? Monitor your team’s communication in the background and interact when you need to. Just pair the Apex Connect with a Bluetooth speaker that has a microphone and you’re all set.

IT'S TOUGH TOO

More than just a pretty face, Sonetics Apex Connect is rugged, watertight, and dust-resistant with an IP67 rating.

NEW LEVELS OF COLLABORATION

Minimize work stoppages

Give  alerts in real-time

Deliver more effective training

Connect Technical Specifications

DECT Connectivity

Explore DECT7

Common DECT Specification

  • Carrier Spacing: 1.724 MHz
  • Time Slots: 2 x 12 (up and down stream)
  • Channel Allocation: Dynamic
  • Encryption: DECT Standard Cipher with 35-bit initialization vector
  • Audio Bandwidth:  300 Hz to 3.4 kHz, Narrow Band, G.726 compression 50 Hz to 7 kHz, Wide Band, G.722 compression

Region 1 Specific Specifications

  • Authorized for use in: Canada, USA
  • Frequency Bandwidth: 1920 MHz to 1930 MHz
  • Number of Carriers: 5
  • Total Time Slots: 60 in G.726(narrow band) / 30 in G.722(wide band)
  • Average Output Power: 4 mW
  • Maximum Output Power: 100 mW
  • DECT Range: 800 ft.

Two-Way Radio Connectivity

Connect to the ComHub for team push-to-talk

Bluetooth Connectivity

  • Class: Class 2 Device
  • Frequency Bandwidth: 2400 MHz to 2485 MHz
  • Maximum Output Power: 2.4mW / 4dBm
  • Range: Up to Bluetooth standard 33 feet (10 meters)
  • Version: 5.0/4.2 with secure simple pairing

Regulatory

  • FCC Part 15
  • FCC ID Apex Connect: V9N950140600V1
  • IC UPN APEX Connect: 7895A-950140600

Voice Prompts

Instant voice feedback confirms feature settings and menu selections.

Sonetics Firmware Updater

Update Apex Connect firmware to access the newest enhancements.

Size and Weight

  • 3″ x 3″ x 1″
  • 5.8 oz (8.1 oz w/ belt clip)

Power and Battery

  • Battery: 3.7V rechargeable lithium ion battery
  • Battery Life: More than 24 hours at 77°F (25°C)
  • Charge time: 4 hours for full discharged battery
  • AC Charge Source: Supplied; USB Wall Charger 5V, 2.4A
  • DC Charge Source: 5V, 1A minimum, cable supplied
  • Over voltage, under voltage, over current and over temperature protection

Environmental Requirements

  • IP-Rating: IP67 (watertight up to 1 meter and dust proof)
  • Operating temperature: -22°F (-30°C) to +140°F (+60°C)
  • Storage temperature: -40°F (-40°C) to +122°F (+50°C)

ISO

  • Conducted Transients per 7637-2
  • Quality Management System ISO 9001:2008

MIL SPEC

  • Humidity per MIL-STD 810F and 810G
  • Temperature Shock per MIL-STD 810F and 810G
  • Chemical Exposure per MIL-STD 810

SAE

  • Salt Spray per J1455, Sec. 4.3
  • Vibration per J1455, Sec. 4.9
  • Conducted Immunity per J1113-11
  • Electrostatic Discharge per J1113-13
  • Radiated Emissions per J1113-41

UL & UN

UL1642 Standard for Lithium Batteries

UN38.3 UN Transportation Testing for Lithium batteries

In the box

  • Apex Connect
  • Magnetic Belt Clip
  • Magnet Clasp
  • AC USB Wall Adapter
  • USB-C Charging Cable
  • DC Charging Adapter
  • Quick Start Guide

Not included

GET STARTED

Empower your team to be more productive, more efficient and more connected.
