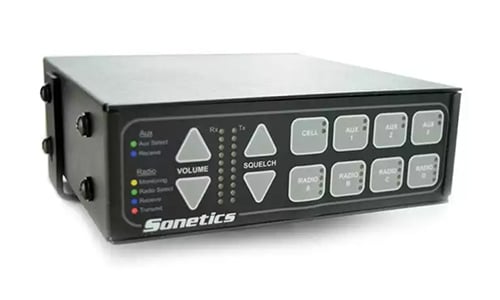

SON202 & SON204

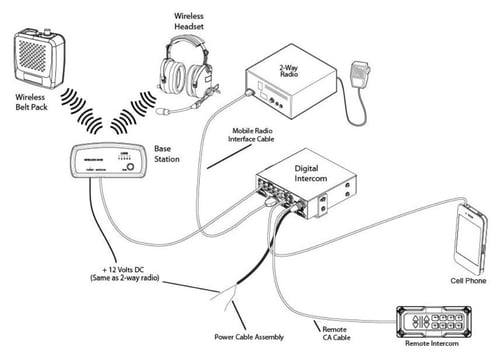

The Sonetics SON200 Series Digital Intercoms allow users to connect up to four radios for simulcast interoperability between multiple crews, departments, contractors, or jurisdictions to improve operational efficiencies and worker safety. The Digital Intercom is customizable to accommodate new or existing radio and intercom configurations, interfaces up to four additional devices, including a cell phone, and is 100% compatible with existing Sonetics installations.
|
DIGITAL INTERCOM PRODUCT LINE
|
|
Model
|
Description
|
Radio Interfaces
|
Aux/Cell
|
Wireless Base or Wired Headset
|
|
SON202
|
2 Radio Digital Intercom
|
2
|
2
|
8
|
|
SON204
|
4 Radio Digital Intercom
|
4
|
4
|
10
|
Size: 6.6″ L x 6.1″ W x 2″ H (with mounting bracket)
Weight: 42.6 oz. (without mounting bracket)
Output: 375 mW into a total of 6, 150 ohm headsets (1 each channel)
Power Requirements: 0.5A at 12V nominal, (-) GND (Operating range from 9-17 VDC)

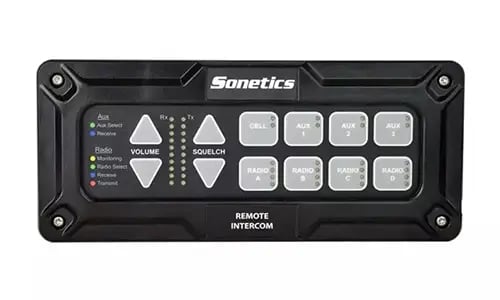

REMOTE INTERCOM:
Size: 7.125″ L x 3″ W x .875 Deep
Weight: 15 oz
Power Requirements: Supplied by Intercom
